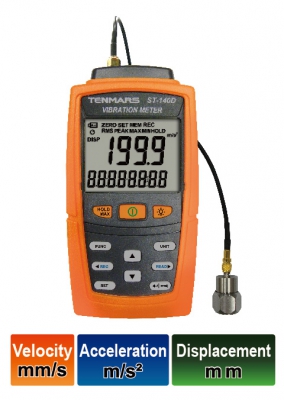

ST-140D DATALOGGING VIBRATION METER
- Acceleration, Velocity and Displacement measurement.
- High sensitivity probe head for accurate measurement.
- Provides long and short probe head.
- Frequency LO range: 10Hz-1KHz meet ISO 2954 Measurement,Hi range:10Hz-5KHz.
- Stores 99records manually.(ST-140)
- Data logger with 9999 records capacity.(ST-140D)
- USB interface.(ST-140D)
- Auto power off with disable function.
|
Measurement |
Acceleration |
10HZ～1KHZ(LO)；1KHZ～5KHZ(HI) |
|
Velocity |
10HZ～1KHZ |
|
|
Displacement |
10HZ～1KHZ |
|
|
Measurement
|
Acceleration |
0.1～199.9m/s2 |
|
Velocity |
0.1～199.9mm/s |
|
|
Displacement |
0.001～1.999mm |
|
|
Function |
Acceleration/Velocity |
RMS, Peak, Max Hold, Hold |
|
Displacement |
Peak-Peak, Max Hold, Hold |
|
|
Accuracy |
± (5% reading 2 digits),ref. 80/160Hz, 23°C,<80%RH |
|
|
Dimension |
156x73x35(LxWxH) |
|
|
Power supply |
1.5V AAA alkaline battery x 6 |
|
|
AC adapter |
AC 100~240V to DC8~11V/0.5A |
|
