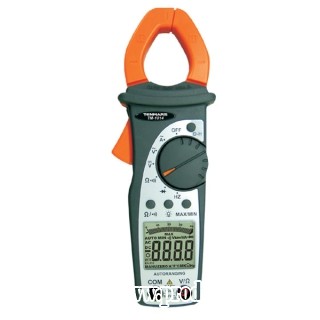

Product Description
CAT III 600V
3-3/4 digit LCD Backlit Display, with Analog Bargraph.
Display Counts: 4000.
Auto Ranging.
Data Hold and Min/Max functions.
Test Ranges: ACV, ACA, DCV, Resistance, Frequency, Continuity.
Maximum conductor size 30mm.
Continuity test below 40 ohms, buzzer will sound.
Auto Power off.
Double injection outer case.
|
Maximum Current |
400 Amps |
|
Display Counts |
4000 |
|
Maximum Conductor Size |
30mm |
|
AC Current Range |
0.01A to 400A, ±(2.0% of rdg + 10 dgts) |
|
AC Voltage Range |
1mV to 600V, ±(1.0% of rdg + 3 dgts) |
|
DC Voltage Range |
1mV to 600V, ±(0.8% of rdg + 2 dgts) |
|
Continuity Buzzer |
Yes |
|
Data Hold |
Yes |
|
Resistance |
0.1 ohm to 40 megohms ±(1.0% + 3 dgts) |
|
Frequency |
1Hz to 400kHz ±(0.8% + 3 dgts) |
|
Min/Max |
Yes |
|
Power Supply |
2 1.5V type 'AAA' batteries |
|
Dimensions |
205mm )L) x 64mm (W) x 39MM (D) |
|
Weight |
280g approx. (including battery) |
