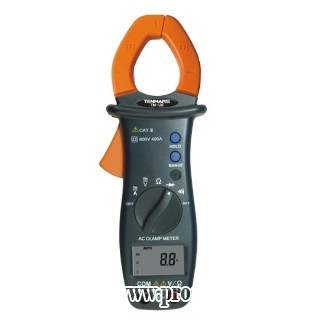

Product Description
CAT III 600V
3-3/4 digit LCD with Analog Bargraph.
Display Counts: 4000.
Auto Ranging.
Auto power off. (after 30 minutes).
High speed bargraph.
Data Hold and Range Hold keys.
Test Ranges: ACV, ACA, DCV, Resistance, Frequency, Continuity.
Maximum conductor size 30mm.
Continuity test below 40 ohms, buzzer will sound
|
Maximum Current |
400 Amps |
|
Display Counts |
4000 |
|
Maximum Conductor Size |
30mm |
|
AC Current Range |
0.1A to 400A, ±(2.0% of rdg + 10 dgts) |
|
AC Voltage Range |
0.1V to 600V, ±(1.5% of rdg + 5 dgts) |
|
DC Voltage Range |
0.1V to 600V, ±(1.0% of rdg + 5 dgts) |
|
Continuity Buzzer |
Yes |
|
Data Hold |
Yes |
|
Resistance |
0.1 ohm to 400 ohms ±(1.0% + 5 dgts) |
|
Frequency |
1Hz to 400kHz ±(0.8% + 3 dgts) |
|
Dimensions |
195mm )L) x 64mm (W) x 39MM (D) |
|
Weight |
280g |
