- Frequency range: 50MHz to 3.5GHz.
- Sensors: Triple Axis (X, Y, Z)
- Manual data memory (Max & AVG) records.
- Calibration factor, Alarm and Clock settings

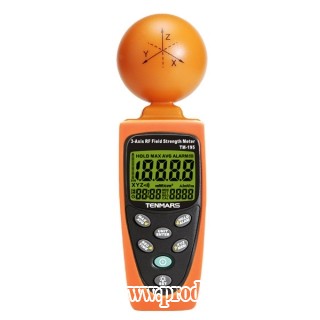

TM-195 is designed for measuring and monitoring Radio Frequency(RF) electromagnetic field strength and capable of measuring the frequency range of 50MHz~3.5GHz. It's ideal for the applications of:
- RF power measurement for transmitters.
- High frequency(RF)electromagnetic wave field strength measurement.
- Mobile phone base station antenna radiation power density measurement.
- Spy camera, wireless bug finder.
- Wireless communication (CW, TDMA, GSM, DECT) applications.
- Wireless LAN (Wi-Fi) detection, installation.
- Cellular /Cordless phone radiation safety level.
- Microwave oven leakage detection.
- Personal living environment EMF safety.
SFECIFICATION
l Display type: Liquid-crystal (LCD), 4-1/2 digits maximum reading 19999.
l Measurement method: Digital, triaxial measurement.
l Directional characteristic: Isotropic, triaxial.
l Measurement range selection: one continuous range.
l Display resolution:0. 1mV/m, 0.1µA/m, 0.001µW/m2, 0.001µW/cm2
l Setting time: typically 1.5s (0 to 90% measurement value.)
l Sample rate: 1.5 times per second.
l Audible alarm: Buzzer.
l Units: mV/m, V/m, µA/m, mA/m, µW/m2, mW/m2, µW/cm2
l Display value: Instantaneous measured value, maximum value, average value, or maximum average value.
l Alarm function: adjustable threshold with ON / OFF
l Calibration factor CAL: adjustable
l Manual data memory and read storage:200 data sets.
l Batteries: 9V NEDA 1604, IEC 6F22 or JIS 006P
l Battery life: Approximate 15 hours.
l Auto power off: Default time 15 minutes. Adjustable threshold 0~99 minutes.
l Operating temperature range: 0°C to + 50°C
l Operating humidity range: 25% to 75 % RH
l Storage temperatures range: -10°C to +60°C
l Storage humidity range: 0% to 80% RH
l Dimensions: 60(L)*60(W)*195(H) mm.
l Weight (including battery): Approx.200g.
l Accessories: User’s manual, 9V battery, Carrying case.
