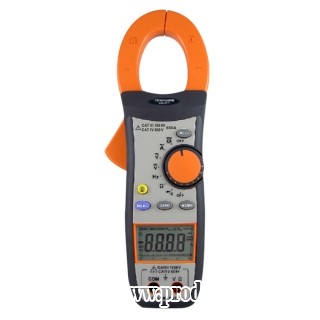

Product Description
CAT IV 600V, CAT III 1000V
3-3/4 digit LCD backlit display and bargraph, with maximum reading of 4000.
AC voltage range: 0 to 750V.
AC current range: 0 to 660A.
DC voltage range: 0 to 1000V.
Resistance measurement to 4000 ohms.
Data Hold, Peak Hold, Min/Max, Autoranging.
Test Ranges: ACV, ACA, Resistance, Frequency, Diode, Continuity.
Work light.
Low battery indication.
SPECIFICATION
|
Maximum Current |
660 Amps |
|
Display |
4000 counts |
|
Max. Conductor Size |
40mm |
|
AC Current |
0.1A to 660A |
|
AC Voltage |
0.1V to 750V |
|
DC Voltage |
0.1V to 1000V |
|
Resistance |
1Ω to 4000Ω, |
|
Continuity Buzzer |
Yes |
|
Diode |
Test voltage |
|
Frequency |
1Hz to 400KHz |
|
Analog Bargraph |
Yes |
|
Backlit Display |
Yes |
|
Work Light |
Yes |
|
Autoranging |
Yes |
|
Auto Power Off |
Yes |
|
Peak Hold |
Yes |
|
Data Hold |
Yes |
|
Min/Max |
Yes |
|
Dimensions |
252mm (L) x 91mm (W) x 22mm (D) |
