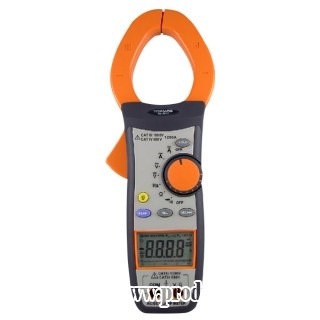

Product Description
CAT IV 600V, CAT III 1000V
LCD backlit display, with maximum reading of 6600.
AC voltage range: 0 to 750V.
AC current range: 0 to 660A.
DC voltage range: 0 to 1000V.
DC Current: 0 to 660A.
Resistance measurement to 66 megohms.
Data Hold, Min/Max, Autoranging, DCA Zero.
Test Ranges: ACV, ACA, Resistance, Frequency, Diode, Continuity.
Work light.
Auto Power Off.
Double Injection outer case.
SPECIFICATION
|
Maximum Current |
660 Amps |
|
Display |
6600 counts |
|
Max. Conductor Size |
40mm |
|
AC Current |
0.1A to 660A |
|
DC Current |
0.01A to 660A |
|
DCA |
Zero Adjustment |
|
AC Voltage |
0.1mV to 750V |
|
DC Voltage |
0.1mV to 1000V |
|
Resistance |
0.1Ω to 4000Ω, |
|
Continuity Buzzer |
Yes |
|
Diode |
Test voltage |
|
Frequency |
1Hz to 660KHz |
|
True Rms |
Yes |
|
Backlit Display |
Yes |
|
Work Light |
Yes |
|
Autoranging |
Yes |
|
Auto Power Off |
Yes |
|
Inrush |
Yes |
|
Data Hold |
Yes |
|
Min/Max |
Yes |
|
Dimensions |
252mm (L) x 91mm (W) x 22mm (D) |
