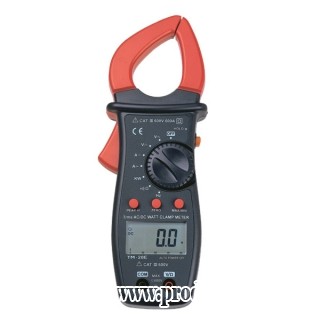

Product Description
CAT III 600V
3-3/4 digit LCD, Backlit Display with maximum reading of 4000.
High-speed bargraph.
True-Rms.
Watt measurement: 400KW
Data Hold, Peak Hold, Min/Max, and Zero functions.
AC/DC volts, AC/DC current, Resistance, Frequency, Watts, Continuity.
Autoranging.
Relative (REL) zero adjust.
Maximum conductor size 35mm.
Low battery indication.
Overload indication.
Continuity buzzer.
Auto power off.
|
Maximum Current |
600 Amps |
|
Display |
4000 counts |
|
Max. Conductor Size |
35mm |
|
AC Current |
0.1A to 600A, ±(2.0% of rdg + 5 dgts) |
|
AC Voltage |
0.1V to 600V, ±(1.2% of rdg + 7 dgts) |
|
DC Current |
0.1A to 600A, ±(1.5% of rdg + 5 dgts) |
|
DC Voltage |
0.1V to 600V, ±(1.0% of rdg + 3 dgts) |
|
Resistance |
1Ω to 4000Ω, |
|
Continuity Buzzer |
Yes |
|
Frequency |
1Hz to 400KHz |
|
AC/DC Watts |
0.1W to 400KW, ±(5.0% of rdg + 5 dgts) |
|
Backlit Display |
Yes |
|
Autorange |
Yes |
|
High Speed Bargraph |
Yes |
|
Auto Power Off |
Yes |
|
Min/Max |
Yes |
|
REL (zero adjust) |
Yes |
|
Data Hold and Peak Hold |
Yes |
|
Dimensions |
218mm (L) x 75mm (W) x 43mm (D) |
|
Weight |
375g |
