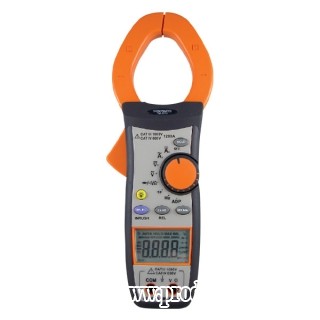

Product Description
CAT IV 600V, CAT III 1000V
LCD Backlit display with maximum reading of 6600.
AC voltage range: 0 to 750V.
AC current range: 0 to 1200A.
DC voltage range: 0 to 1000V.
DC current range: 0 to 1200A
Data Hold, Min/Max, Inrush.
Test Ranges: ACV, ACA, DCV, DCA, Resistance, Frequency, Diode, Capacitance, Continuity.
Work Light.
Auto Power Off.
Double injection outer case.
Specification
|
Maximum Current |
1200 Amps |
|
Display |
6600 counts |
|
Max. Conductor Size |
52mm |
|
AC Current |
0.01A to 1200A |
|
AC Voltage |
0.1mV to 750V |
|
DC Voltage |
0.1mV to 1000V |
|
DC Current (REL) |
0.01A to 1200A |
|
Resistance |
0.1Ω to 66MΩ |
|
Continuity Buzzer |
Yes |
|
Diode |
Test voltage |
|
Capacitance |
Yes |
|
Frequency |
1Hz to 660KHz |
|
Backlit Display |
Yes |
|
Work Light |
Yes |
|
Autoranging |
Yes |
|
Auto Power Off |
Yes |
|
Data Hold |
Yes |
|
Inrush |
Yes |
|
Min/Max |
Yes |
|
Dimensions |
266mm (L) x 91mm (W) x 22mm (D) |
