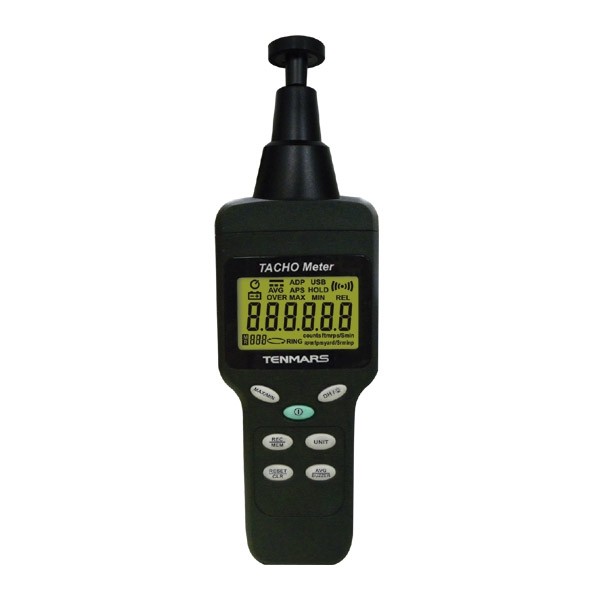

Product Description
- Large LCD 6 digits with backlit.
- Measuring by the output of red visible-spectrum light.
- Measurement distance: 40~500mm.
- Memory of 200 data.
- USB datalogger up to 30,000 data (TM-4100D)
Specification
Auto-range - Average - Max/Min.
- Auto Power Saver - Hold. - Buzzer (on /off).
SPECIFICATION:
|
Models: |
TM-4100 |
TM-4100D (USB Datalogger) |
|
Display |
6 digits backlit LCD |
|
|
Range switching |
Automatic |
|
|
Detection distance |
Non-contact, 40mm to 500mm (1.58" to 19.7") |
|
|
Measurement method |
Output the red visible-spectrum light containing the signal to the tape or plate and receiving the signal from the reflective light. |
|
|
Measuring indicator |
The LCD displays "RING" with a buzzer sound ( or off). |
|
|
Resolution |
Over 10, 000 count, AVG "ON" :+/-2 dgt.; AVG "OFF" :+/-20 dgt. |
|
|
Sampling rate |
0.5 to 10 times/sec |
|
|
Operating Temp./Humidity |
0 ~ 40º C; 25% to 75 % RH. |
|
|
Storage Temp./ Humidity |
-10 ~ 60º C; 0% to 80% RH. |
|
|
Memory capacity |
200 data sets |
(TM-4100D) 200data sets in memory & USB datalogger: 30,000 data sets. |
|
Power Supply |
9V battery x1 |
|
|
Maximum rated power |
0.5VA |
|
|
Battery life |
About 30 hours (buzzer off) |
|
|
Dimensions |
Approx. 186mm x 76mm x 36mm (L x W x H) |
|
|
Weight |
Approx.200g |
|
|
Accessories |
Battery x1, Carrying case x1, Reflective tape x1 sheet, MINI USB 4P(MALE) to USB A ¡V Mini (4P) cable x1
Optional tool kit for contact measurement : TM-4100K
|
|
Rotational speed measurement:
|
MODE |
R A N G |
Contactless measurement |
Contact measurement |
||
|
AVG=ON |
AVG=OFF |
AVG=ON |
AVG=OFF |
||
|
Rotation speed measurement (r/m) |
1 |
30.00 to 199.99 |
－ |
15.00 to 199.99 |
－ |
|
2 |
200.0 to 1999.9 |
300.0 to 1999.0 |
200.0 to 1999.9 |
150.0 to 1999.0 |
|
|
3 |
2000 to 19999 |
2000 to 19990 |
2000 to 19999 |
2000 to 19990 |
|
|
4 |
20000 to 99990 |
20000 to 99990 |
－ |
－ |
|
|
Rotational speed measurement (r/s) |
1 |
0.5000 to 1.9999 |
－ |
0.2500 to 1.9999 |
－ |
|
2 |
2.000 to 19.999 |
5.000 to 19.990 |
2.000 to 19.999 |
2.500 to 19.990 |
|
|
3 |
20.00 to 199.99 |
20.00 to 199.90 |
20.00 to 199.99 |
20.00 to 199.90 |
|
|
4 |
200.0 to 1600.0 |
200.0 to 1600.0 |
200.0 to 333.0 |
200.0 to 333.0 |
|
|
Period Measurement (ms) |
1 |
0.6000 to 1.9999 |
0.6000 to 1.9990 |
－ |
－ |
|
2 |
2.000 to 19.999 |
2.000 to 19.990 |
3.000 to 19.999 |
3.000 to 19.990 |
|
|
3 |
20.00 to 199.99 |
20.00 to 199.90 |
20.00 to 199.909 |
20.00 to 19.90 |
|
|
4 |
200.0 to 1999.9 |
－ |
200.0 to 3999.9 |
200.0 to 399.0 |
|
|
Count Measurement (count) |
0 to 999999 (Input conditions Up to rotational speed measurement upper limit) |
||||
Circumferential speed measurement:
|
MODE |
Range |
Contact measurement |
|
|
AVG=ON |
AVG=OFF |
||
|
Circumferential measurement (m/min) |
1 |
1.500 to 19.999 |
－ |
|
2 |
20.00 to 199.99 |
15.00 to 199.90 |
|
|
3 |
200.0 to 1999.9 |
200.0 to 1999.0 |
|
|
Circumferential measurement (m/s) |
1 |
0.0250 to 1.9999 |
0.2500 to 1.9990 |
|
2 |
2.000 to 19.999 |
2.000 to 19.990 |
|
|
3 |
20.00 to 33.30 |
20.00 to 33.30 |
|
|
Accuracy |
AVG=ON |
AVG=OFF |
|
Up to 9.999 counts |
±1dgt. |
±10dgt. |
|
10.000 counts or more |
±2dgt. |
±20dgt. |
|
20.000 count or more (r/min mode only) |
±20dgt. |
±100dgt. |
|
Period measurement only |
±0.5%rdg. Is added to above-mentioned accuracy. |
|
