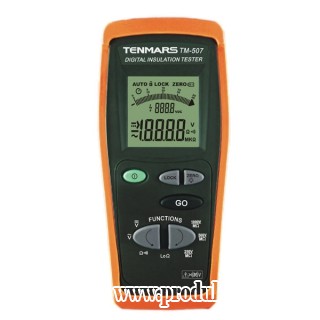

Product Description
EN 61557, EN 61010-1 CAT IV 600V
4 digit LCD display.
Automatic Polarity Indication.
Low battery indication.
Measures high insulation resistance with auto range:
250V: 4MΩ to 1000MΩ.
500V: 4MΩ to 2000MΩ.
1000V: 4MΩ to 4000MΩ.
Measures AC and DC voltages: 0V to 600V.
Function Keys: POWER, GO, ZERO, LOCK, BACKLIT.
Continuity Test.
Auto Discharge.
Auto Power Off.
Specification
DC Voltage Measurement
|
Range |
Resolution |
Accuracy |
Input Impedance |
Overload Protection |
|
0.1V to 600V |
0.1V |
±(0.5% of rdg + 1dgt) |
3MΩ |
605V AC max RMS |
AC Voltage Measurement
|
Range |
Resolution |
Accuracy |
Input Impedance |
Overload Protection |
|
0.1V to 600V |
0.1V |
±(0.8% of rdg + 4dgt) |
3MΩ |
605V AC max RMS |
Max crest factor
Resistance Measurement/Test Continuity with buzzer
|
Range |
Resolution |
Accuracy |
Overload Protection |
|
0.1Ω to 199.9Ω |
0.1Ω |
±(2.0% of rdg + 3dgt) |
605V AC max RMS |
The buzzer sounds when measured resistance is lower than 30 ohms.
LO Ohms
|
Range |
Resolution |
Accuracy |
Overload Protection |
|
0.01Ω to 19.99Ω |
0.01Ω |
±(2.0% of rdg + 3dgt) |
605V AC max RMS |
|
Test Current: |
>200mA DC up to 5 ohms (including cable resistance). |
|
Test Current: |
>45mA DC up to 5 ohms (including cable resistance). |
|
Open Circuit Voltage: 4V <VO <24V |
|
MOhm: Insulation Resistance (Auto Ranging)
|
Test Voltage |
Resistance Range |
Resolution |
Accuracy |
Overload Protection |
|
250V |
0.001 to 0.100MΩ |
0.001MΩ |
±10 digits |
605V max RMS |
|
0.101 to 3.999MΩ |
0.001MΩ |
±(2.0% rdg + 5 dgt) |
||
|
4.00 to 39.99MΩ |
0.01MΩ |
|||
|
40.0 to 399.9MΩ |
0.1MΩ |
±(5.0% rdg + 5 dgt) |
||
|
400 to 1000MΩ |
1MΩ |
|||
|
500V |
0.001 to 0.250MΩ |
0.001MΩ |
±15 digits |
|
|
0.251 to 3.999MΩ |
0.001MΩ |
±(2.0% rdg + 5 dgt) |
||
|
4.00 to 39.99MΩ |
0.01MΩ |
|||
|
40.0 to 399.9MΩ |
0.1MΩ |
|||
|
400 to 2000MΩ |
1MΩ |
±(5.0% rdg + 5 dgt) |
||
|
1000V |
0.001 to 0.250MΩ |
0.001MΩ |
±15 digits |
|
|
0.251 to 3.999MΩ |
0.001MΩ |
±(2.0% rdg + 5 dgt) |
||
|
4.00 to 39.99MΩ |
0.01MΩ |
|||
|
40.0 to 399.9MΩ |
0.1MΩ |
|||
|
400 to 1000MΩ |
1MΩ |
±(3.0% rdg + 5 dgt) |
||
|
1000 to 4000MΩ |
1MΩ |
±(5.0% rdg + 10 dgt) |
