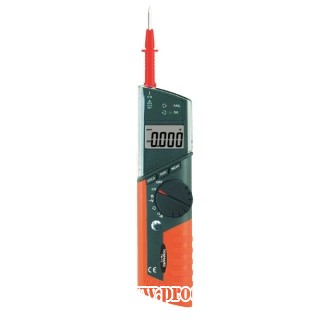

Product Description
CAT IV 600V
LCD display with maximum reading of 4000, plus decimal point.
Analog Bargraph.
AC voltage range: 0 to 600V.
DC voltage range: 0 to 600V.
Auto power off (15 minutes).
Function keys: REL, Data Hold, Range Hold.
Test ranges: ACV, DCV, Resistance, Continuity, Diode, Frequency.
Double injection outer case.
SPECIFICATIONS
|
Display |
4000 counts |
|
Overvoltage Category |
CAT IV 600V |
|
AC Voltage |
1mV to 600V ±(1.0% of rdg + 3 dgts) |
|
DC Voltage |
0.1mV to 600V ±(1.0% of rdg + 2 dgts) |
|
Resistance |
0.1Ω to 40MΩ ±(1.0% of rdg + 3 dgts) |
|
Continuity Buzzer |
Yes |
|
Diode |
Test voltage |
|
Frequency |
0.001Hz to 10KHz ±(0.8% of rdg + 2 dgts) |
|
Autoranging |
Yes |
|
Auto Power Off |
Yes |
|
Data Hold |
Yes |
|
REL (Zero) |
Yes |
|
Auto Power Off |
Yes |
|
Dimensions |
200mm (L) x 51mm (W) x 30mm (D) |
|
Weight |
150g approx. |
