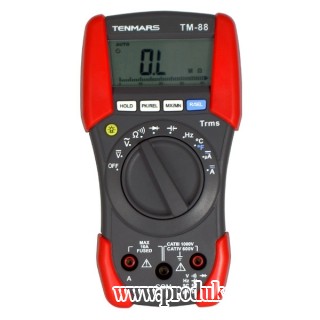

Product Description
CAT IV 600V
LCD Backlit Display, with maximum reading of 3999.
Analog Bargraph Display
True Rms.
AC voltage range: 0 to 1000V.
DC voltage range: 0 to 1000V.
AC Current range: 0.1µA to 10A.
DC Current range: 0.1µA to 10A.
Auto power off (15 minutes).
Min/Max.
ACV, DCV, ACA, DCA, Resistance, Diode, Frequency, Capacitance, Duty Cycle, Continuity, Temperature, Range Hold, Data Hold, REL.
Accessories.
|
Overvoltage Category |
CAT IV 600V, CAT III 1000V |
|
True Rms |
Yes |
|
LCD Display |
3999 counts |
|
Sampling Rate |
2.5 times/second |
|
Backlit |
Yes |
|
Bargraph |
Yes |
|
Auto Power Off |
Yes |
|
DC Voltage |
0.1mV to 1000V ±(0.5% of rdg + 2 dgts) |
|
AC Voltage |
0.001V to 1000V ±(1.3% of rdg + 5 dgt) |
|
DC Current |
0.1µA to 10A ±(1.0% of rdg + 3 dgt) |
|
AC Current |
0.1µA to 10A ±(1.5% of rdg + 5 dgt) |
|
Resistance/Accuracy |
400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ; ±(1.0% of rdg + 2 dgt) |
|
Protection |
1000Vrms |
|
Continuity Buzzer |
Yes |
|
Diode Test |
Test voltage 1.5 volts |
|
Frequency |
1.0Hz to 100KHz |
|
Capacitance/Accuracy |
4nF, 40nF, 400nF, 4µF, 40µF, 400µF, 4mF, 40mF, ±(1.0% of rdg + 5 dgt) |
|
Temperature |
-40°C to 800°C (-40°F to 1382°F) |
|
Range Hold |
Yes |
|
Data Hold |
Yes |
|
Min/Max |
Yes |
|
Peak Hold |
Yes |
|
REL (Zero) |
Yes |
|
Accessories |
Carrying case, Test Leads, Operating Manual, Battery, (Optional Temperature Adapter) |
