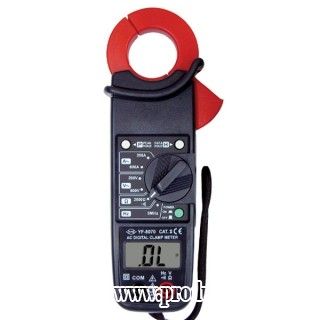

Product Description
CAT II 600V
3-1/2 digit LCD with maximum reading of 2000.
AC voltage range: 200V, 750V.
AC current range: 20A, 200A, 600A.
Resistance measurement to 2000 ohms.
Data Hold, Peak Hold.
Test Ranges: ACV, ACA, Resistance, Freq, Continuity.
Frequency. (non-contact frequency measurement.
Low battery indication
|
Maximum Current |
600 Amps |
|
Display |
2000 counts |
|
Max. Conductor Size |
35mm |
|
AC Current |
10mA to 600A, ±(2.0% of rdg + 5 dgts) |
|
AC Voltage |
0.1V to 750V, ±(1.2% of rdg + 3 dgts) |
|
Resistance |
1Ω to 2000Ω, ±(1.0% of rdg + 2 dgts) |
|
Continuity Buzzer |
Yes |
|
Frequency |
1Hz to 5MHz, ±(0.8% of rdg + 3 dgts) |
|
Peak and Data Hold |
Yes |
|
Dimensions |
221mm (L) x 62mm (W) x 35mm (D) |
|
Weight |
330g |
