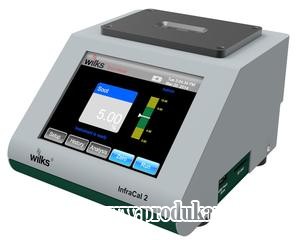

The InfraCal2 has added features such as touch screen display, data storage and transfer, a multi-language interface and password protected settings. The internal battery pack allows for portability and up to 12 hours continuous use, providing results in under a minute. Samples are applied to a scratch-resistant cubic zirconia attenuated total reflectance (ATR) sample plate and easily cleaned with a cloth or paper towel. No solvents requiring special ventilation, expensive waste disposal or difficult to clean cells are needed. The analysis can be done by non-technical personnel with no formal training and is ideal for lab or field use for the following applications:
- Measurement range: 0 - 15% soot
- Instrument repeatability: +/- 0.2
- Complies with ASTM Method D7686
- No Dilution or Sample Preparation
- Rapid analysis - less than 30 seconds per sample
Ideal for:
- Oil testing labs - achieve comparable results to TGA or FTIR in a fraction of the time
- Engine test labs - obtain on-the-spot assessment of the engine test progress
- Fleet maintenance shops - check soot level to know exactly when to schedule oil changes
- Construction or mining sites - stay operational with oil condition checks
- On-board-ship - no need to return to port to monitor oil condition
- Power generation stations - monitor the quality of the lubricating oil without waiting for off-site lab results
Features & Benefits
|
Benefits |
Features |
|
Internal Data Storage |
Data storage including each measurement tagged with analyst, location and date/time information, and password protected instrument settings |
|
Export |
Directly to your PC via USB or a Flash Drive |
|
Touch Screen Display |
The touch screen display allows a simple set up for quick operation along with an easy calibration wizard. |
|
Internal Battery |
The internal battery pack allows for portability and up to 12 hours continuous use. |
| Multi-Language Interface |
English, Spanish, French, Arabic |
|
Password Protected Settings |
Calibration and data are password protected to avoid accidental deletion |
|
No need for Installation/Commissioning |
The InfraCal 2 is a portable analyzer, weighing less than 5 lbs. with a 6 in. square foot print, requiring no installation or commissioning, little to no routine maintenance or recalibration. |
|
Minimal Consumables |
The analysis requires little to no consumables making the cost-per-test minimal. |
Highlights
Specifications:
|
Analytical Wavelength/Wave Number |
3.9 micrometers, 2464 cm-1 |
|
Power Requirements |
12 volts DC, 2.0 amps, 12 volt battery pack or adapter available |
|
Power Supply |
Universal AC/DC |
|
Weight |
4.5 lbs. (2.0 kg) |
|
Dimensions |
6.5 x 6.5 x 5" (165 x 165 x 127 mm) |
|
Suggested Operating Range |
5°C - 40°C |
|
Typical Useful Measurement Range |
0 - 15% Soot in diesel engine lube oil |
|
Analysis Time |
Less than 30 seconds |
|
Instrument Repeatability |
±0.2% |
|
Communication Port |
RS232, 9-pin D-sub female, PC Compatible |
