- For drinking water, wastewater or in the process
- Also for high pressure and temperature conditions
- Easy to maintain by easy measuring chain replacement
The SensoLyt® measuring chains with arming are easy to install and boast flexible measuring and application areas.
SensoLyt® measuring chains without arming to install in flow vessels
The SensoLyt® measuring chains without arming can be connected directly to a pH monitor of the EcoLine® or QuadroLine®series. Depending on the application, you can install them into a flow vessel.
ProcessLine (PL) – for the population of replacement fittings
The special design of the process line electrodes makes them close to optimal in their accuracy, stability, speed and longevity to liquid electrolyte electrodes. For the use in pipelines, you can install them into the replacement fitting CHEMtrac 830 M.
Variations
| Model | Description | Order no. |
|---|---|---|
| SensoLyt® SEA | pH single rod measuring chain for strongly contaminated wastewater, to be installed into the SensoLyt® Fitting, measuring range 2 … 12 pH | 109115 |
| SensoLyt® ECA | pH single rod measuring chain for normal contaminated wastewater to be installed into SensoLyt® Fitting, measuring range 2 … 12 pH | 109117 |

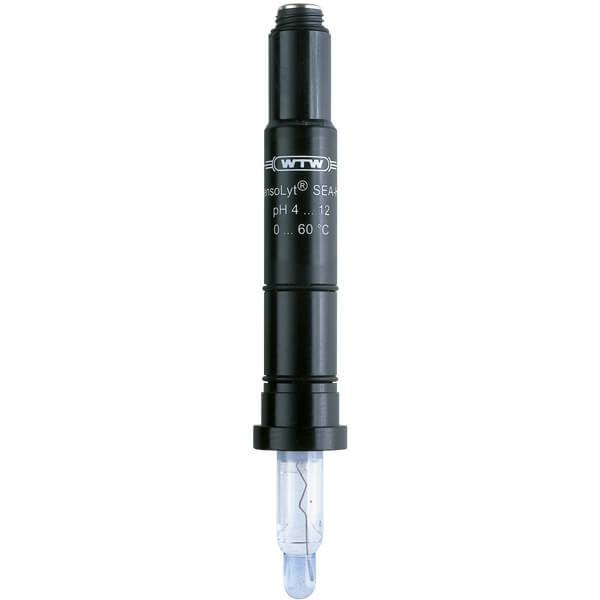

| SensoLyt® SEA-HP | pH single rod measuring chain for use with increased pressure/temperature conditions, to be installed into the SensoLyt®Fitting, measuring range 4 … 12 pH | 109118 |
| SensoLyt® DWA | pH single rod measuring chain for drinking water applications to be installed into the SensoLyt® Fitting, measuring range 0 … 14 pH | 109119 |
| SensoLyt® PtA | ORP single rod measurement for strongly contaminated wastewater, for the installation into the SensoLyt® Fitting, measuring range ±2000 mV | 109125 |
| SensoLyt® SE | Like model SEA, but without arming for the installation into flow vessels | 109100 |
| SensoLyt® EC | Like model ECA, but without arming, for the installation into flow vessels | 109102 |
| SensoLyt® DW | Like model DWA, but without arming to be installed into flow vessels | 109103 |
| SensoLyt® platinum | Like model PtA, but without arming for the installation into flow vessels | 105412 |
| PL 80-120pH | pH single rod measuring chain with S7 plug head, measuring range 0...14 pH | 109233 |
| PL 80-225pH | pH single rod measuring chain with S7 plug head, measuring range 0...14 pH, for the installation into the CHEMTrac 830 M replacement fitting | 109234 |
| PL 81-225pHT VP | pH single rod measuring chain VP screw plug head, measuring range 0...14 pH, for the installation into the CHEMTrac 830 M replacement fitting | 109236 |
| PL 82-225pHT VP | pH single rod measuring chain VP screw plug head, measuring range 0...14 pH, for the installation into the CHEMTrac 830 M replacement fitting | 109239 |
| PL 89-225Pt | ORP single rod measuring chain with S7 plug head, measuring range 0...14 pH, for the installation into the CHEMTrac 830 M replacement fitting | 109235 |
