- USB interface for extremely fast data exchange and software updates
- A solution for every application - up to 20 sensors can be connected, all IQ parameters are measurable
- Flexible and ready for the future – the IQ Sensor Net can be expanded as needed thanks to its modular construction

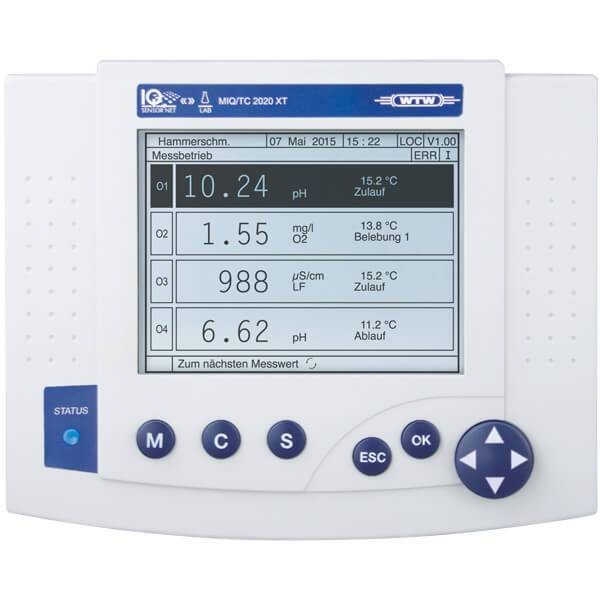

The high-performance processor of the terminal/controller MIQ/TC 2020 XT coordinates all tasks inside the network. The USB interface allows quick data exchange via USB stick or directly to external systems. The system status LED provides reliable and quick information about the function and the system status.
When integrating two MIQ/TC 2020 XT into system, the system security and therefore the availability of the total system is ensuredby the controller-redundancy-function. This lets you use one MIQ/TC 2020 XT as a terminal and a controller (fixed installation), and a second one as a mobile terminal. By including this into the network, you can have remote communcation as well as remote maintenance.
For the remote maintenance from a PC, you need to install the software IQ Software Pack CONNECT. This setting can be made via a user interface according to the MIQ/TC 2020 XT terminal. In addition, you have the option to transfer measuring and configuration data of the system to a computer.
Variations
| Model | Description | Order no. |
|---|---|---|
| MIQ/TC 2020 XT | Module IQ terminal/controller, configurable as a controller (fixed installation) or as a terminal with redundant controller function for system 2020 XT, with USB interface, can be coupled to any IQ SENSOR NET module | 470000 |
| MIQ/TC 2020 XT-H3 | Starter set consisting of MIQ/TC 2020 XT terminal/controller, MIQ/CR3 combined output module with 3 analog outputs (0/4-20 mA) and 3 relay outputs, MIQ/PS wide range power supply | 470016 |
| MIQ/TC 2020 XT-H3 C6 | Starter set consisting of MIQ/TC 2020 XT terminal/controller, MIQ/C6 output module wit 6 analog outputs (0/4-20 mA), MIQ/PS wide range power supply | 470017 |
